LEVERS

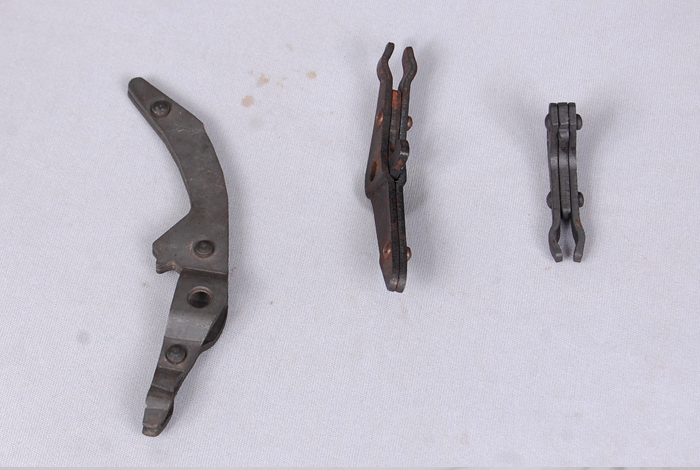

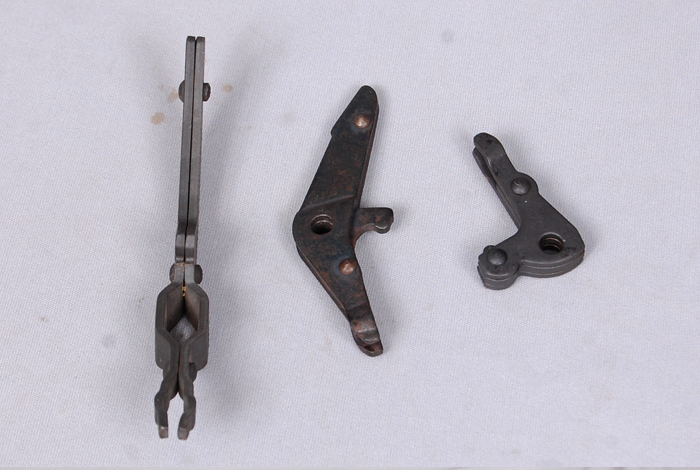

Feed Pump Levers

• These Feed pump levers are used in oil pumps to activated the cams provided with engine shaft.
• This is Actuated Lever operated by Cam of the Engine Shaft .
• It is a Case hardened component the hardness is maintained 300 – 400VPN and Case depth 0.30 – 0.50mm
• It Consists of 2 to 3 Parts assembled by Riveting and the Parallelism of the assembly maintained with in 0.05mm.
• The Design of the Feed pump Lever varied based on the Discharge.
